Blister Packing Machine
Model-FLATRON-SRV- GMP MODEL ALU –ALU & ALU-PVC FORMING

Application & Process :

PRISM has wide range of high precision automatic Blister Packing Machines. AII machines are manufactured under stringent quality control process to ensure years of trouble free production. Special design of machine ensures total synchronization of timings between sealing of ALU -ALU & ALU- PVC base web.

Salient Features :

  • Packing Speed : 30 Cycle/min for Thermo-Forming, 30 Cycle/min for Cold-Forming
  • Feeding System : Auto feeding system by PLC Logic with pneumatic Combination.(For critical products)
  • Servo Drive Indexing : Servo web indexing by rigid PLC Logic.
  • Operator Interface : User friendly MMI touch screen (Man machine interface)
  • Pneumatic Operations : Festo make for fast response, oil free, minimum wear and tear, easy maintenance and universal Availability of bought outs.

Packaging Materials :

  • Base Material : ALU-ALU/ PVC/PVC-PVDC/ACCLAR/TRIPLEX/PP
  • Lading Material : Aluminum with Heat Sealable Lacquer Coating.

Utilities Requirement :

  • Compressed Air : 20 CFM dry air at a Pressure of 8 Kg/Cm2
  • Water Cooler : 80 Liters / Hr. Inlet pressure = 2.5 bar (Max) Water outlet Temp. = 15 ± 2° C
  • Connected Load : 4.5 KW
  • Electrical Power : 415 V ± 10%, 3 Phase, AC, 50 Hz ± 2 Hz (4 Wire).
  • Earthing Cable : Copper, 2.5 mm2 (Minimum)
Technical Specification :
DISCRIPTION
THERMO FOMRING
(WHEN FITTED)
COLD FORMING ALU-ALU
Base Film Width
PVC Film 150 mm
Alu. Foil 150 mm
Film Thickness mm
PVC 0.25 – 0.40 mm
Alu. 0.13-0.15
Reel Dia.
PVC 440 mm
Alu. 440 mm
Sealing Foil Width
150 mm
150 mm
Sealing Foil Thick
0.02 – 0.03 mm
0.02 – 0.04 mm
Sealing Foil Dia.
210 mm
210 mm
Pack Length
140 mm
140 mm
Pack Width
110 mm
110 mm
Forming Depth
12 mm
12 mm
Cycle Speed/Output
30 Cycles/Min.
30 Cycles/Min.
Overall Dimensions (Approx.) mm
L 2900 x W 900 x H 1600
L 2900 x W 900 x H 1600
Net Weight (Approx.)
1050 Kgs.

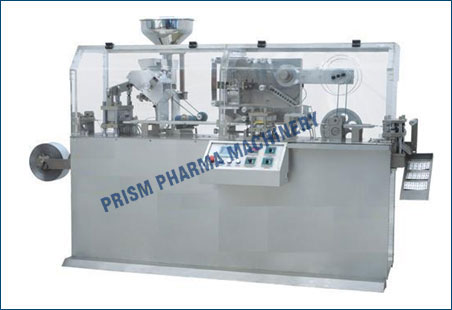

Blister Packing Machine – Model: FLATRON- SRV- ALU / ALU: Cold Forming
